length：1500MM width：600MM height：1500MM
|
Serial number
|
model
|
Total powerkw/h
|
Equipped with water pump powerkw/h
|
Blenderpower
|
Press powerkw/h
|
maximumm3/h
|
|
1
|
BSY-880B
|
5.5
|
3.0
|
|
2.2
|
40
|
|
2
|
BSY-88C
|
5.5
|
3.0
|
|
2.2
|
30
|
|
Remarks: The difference between the two models is the size of the filter gap, which can be customized according to user needs
|
Maximum filtration capacity: 40 cubic meters/hour, maximum slag output: 4 cubic meters/hour

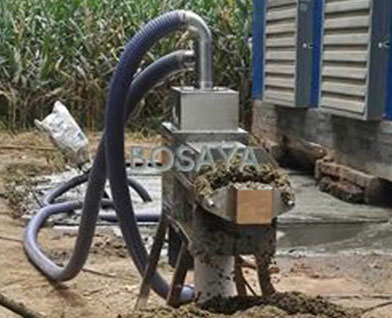

Practicability: This series of machine slag liquid separation speed is fast, the moisture content of the separated manure residue is between 40-65%, the slag content and water content can be adjusted, and it can be applied to feed of different ingredients. The pig manure is easy to transport after treatment. Its solids are very suitable as raw materials for chicken, duck and fish feed and organic fertilizer.
The solid-liquid separation of pig manure water before entering the biogas digester can not only solve the precipitation problem of pig manure in the biogas digester, and greatly enhance the processing capacity of the biogas digester. It can also greatly reduce the construction area of biogas digesters and biochemical tanks; save the construction investment and land use area of environmental protection treatment.
1. Advanced：
①The solid-liquid separator adopts modular manufacturing; easy installation, strong decontamination ability, no clogging, and easy cleaning. The solid content, chemical oxygen consumption, total oxygen consumption, nitrogen and phosphorus removal rate of treated manure water can be between 70-95%.
②Using ultra-fine filter strip slit filter screen, filtering more thoroughly.
③Durability: The screens and dragons of this series are made of stainless steel, which is corrosion-resistant, high-strength, and has a long service life.
4: It adopts industrial special microcomputer control to realize automatic control and automatic detection of machine running status.
-CW-Application field of "direct pressure solid-liquid separator"：
●Suitable for various solid-liquid separations such as animal husbandry, canteens and restaurants, and pharmaceuticals;
“B-CW-880Main features of "type direct pressure solid-liquid separator"：
→All stainless steel body: beautiful, wear-resistant, corrosion-resistant, and meet environmental protection requirements and standards;
→Humanized design: One-button operation and automatic operation function, the operation is very simple.
→System integration of global high-quality devices: to ensure high quality, stable performance and long service life.
→Replaceable modular controller and quick-plug design, maintenance is also very simple and convenient.
Basic requirements for use:
① Build a manure storage tank for storing pig manure (diameter 2 and 2.2 meters high);
②The solidified content of manure water concentration is 30%. If the concentration is too low, the disge efficiency will be reduced;
③The separated pig manure should be unfermented.
