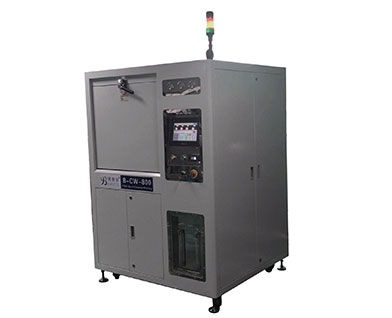

PCBA offline cleaning machine
>
PCBA off line cleaning machine
Product name:

PCBA off line cleaning machine

number:
0


One. Application areas and acteristics of PCBA offline cleaning machine:


1. It is suitable for cleaning PCBA boards and organic and inorganic matters on the surface of precision products for thorough and effective cleaning


2. Fully automatic cleaning mode: complete the cleaning, rinsing, and drying processes in a cleaning room, and the cleaning process is clear at a glance


3. Using water-based cleaning fluid, low operating cost and long service life.


4. Add DI water supply pressure, nozzle spray pressure and disge, and recovery diaphragm pump pressure monitoring gauges to visually display the cleaning working status to ensure the normal operation of the equipment and prevent misoperation;

5. Built-in pre-disge filtering system, which effectively filters various solid impurities generated during the cleaning process to achieve safer and more environmentally friendly disge;


6. The original solvent tank, the solvent dilution tank, and the spray tank are all equipped with high and low level indication and alarm devices to ensure safe operation;

7. With a solvent proportioning system, the automatic proportioning system will dilute the solvent stock solution and deionized water in proportion and heat it for cleaning. After the cleaning process is over,

     The used solvent will be filtered through a stainless steel filter and then recycled to the diluent tank. In the rinsing process, deionized water is used to rinse repeatedly until it reaches the cleanliness requirement;


8. Using a stable and reliable operating platform and 14" touch screen, the system can be turned on, off, paused and started at any time, which is convenient and quick;


9. According to different operator permissions, it is divided into operator password, manager password and system parameter password, which conform to the quality management system;


10. Built-in temperature heating control, real-time detection and control of solvent and cavity temperature, and real-time display of the working status of the cleaning system components, program running progress,

  Information such as maintenance tips is convenient for operation and maintenance.



Two: Parameters of automatic PCBA offline cleaning machine (B-CW-800):



Project Introduction

Technical Parameters

Remarks

Dimensions

1300MM(L)*1200(W)*1800(H)



Place the material basket size

610mm(L) ×560mm(W) × 160mm(H) 2 layer



Basket reciprocating stroke (eliminate shadow effect)

30MM



Single rinse water consumption

17L



Nozzle pressure

50PSI~80PSIAdjustable

Cleaning time

0~59Minute adjustable

Some changes according to different product conditions

Rinsing time

0~59Minute adjustable

Some changes according to different product conditions

Rinsing times

1~50Adjustable

Some changes according to different product conditions

Drying time

0~59Minute adjustable

Some changes according to different product conditions

Nozzle spray angle, quantity

15°;48PCS



Original tank capacity

32L



Spray tank capacity

17L



Solvent dilution tank capacity

60L



Filter accuracy before rinsing water disge

0.45UM



Automatic ratio range

5%~25%

Optional

Drying air filtration accuracy

10Uor5U

Optional

Compressed air supply

0.45MPA~0.7MPA

Adjustable

DI water supply

30~65L/Min

Adjustable

DI water pressure

≤0.4Mpa



Water inlet and outlet; solvent outlet connection pipe

One inch



Resistivity meter monitoring

0~18Megohm



Exhaust outlet size

Diameter: 100MM; Position height: 30MM



power supply

AC380V/50HZ/50A Total power:30KW

Equipped with power cord 6 square meters (not working at the same time)
